平板加熱元件

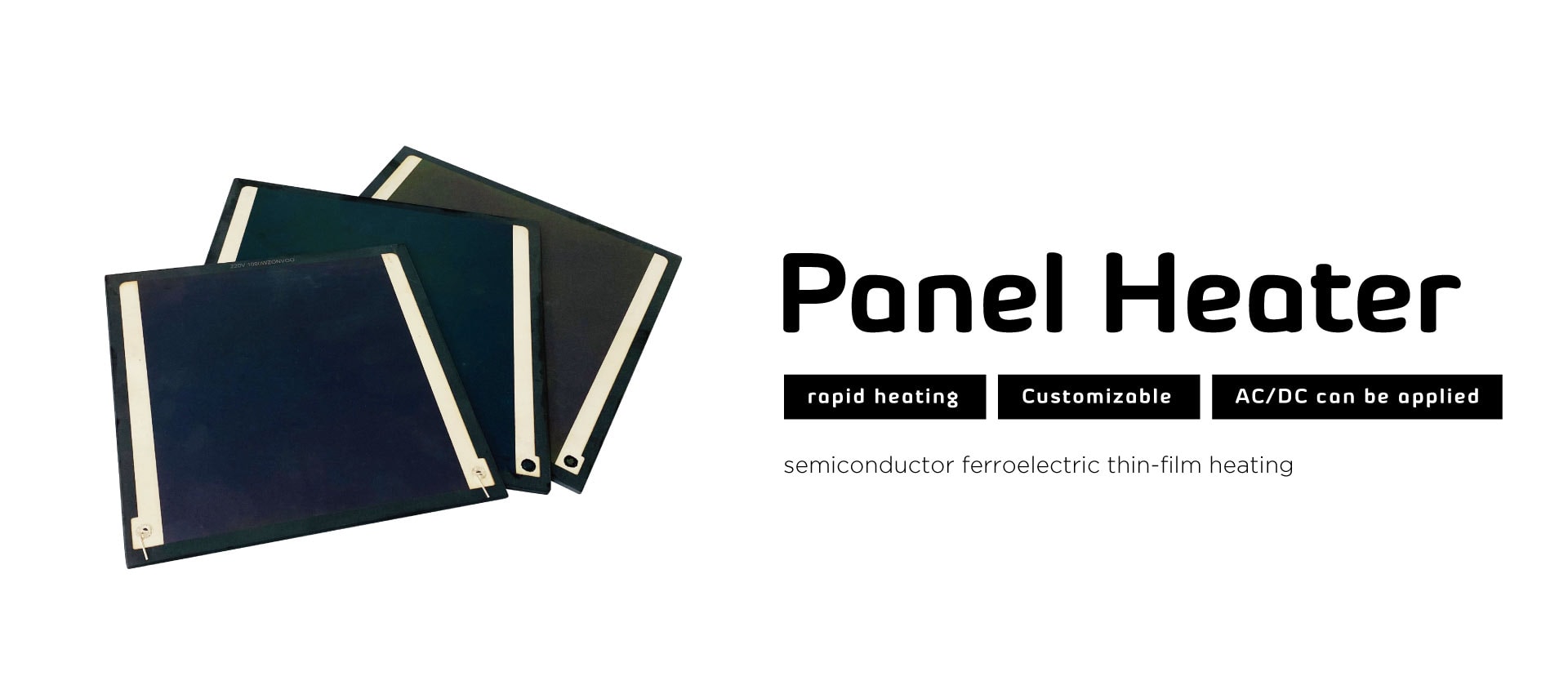

Panel Heater
- Both AC/DC are applicable.
- Ceramics, glass, and glass-ceramics can be made according to the size of the area.
- The heat conversion rate is high, which can effectively save energy, save electricity, be safe and reliable.
- People's livelihood: electric oven, electric grill, wine warmer, thermos (hot water pot), medical equipment, infrared heater, heater, stove, beauty machine, health care machine...etc.
- Industrial use: defogging glass, injection molding machine, drying equipment, stove, oven, drying oven...
- The power size can be customized.
產品規格 /
Product Specifications
- Heating film: The heating film is directly coated on the substrate
- Applicable voltage: AC/DC 5V - AC/DC 480V
- Heating temperature : 25 - 450°C
- Use power: can be customized according to demand
- Size: can be customized
Previous
Next
Wafer heating plate
- Heating film: The heating film is directly coated on the substrate
- Applicable voltage: AC / DC 100V ~ 380V
- Heating temperature: 100 ~ 500°C
- Purpose of use: Wafer heating
- Dimensions: L350 x W350 x H4 (mm)
Extended products

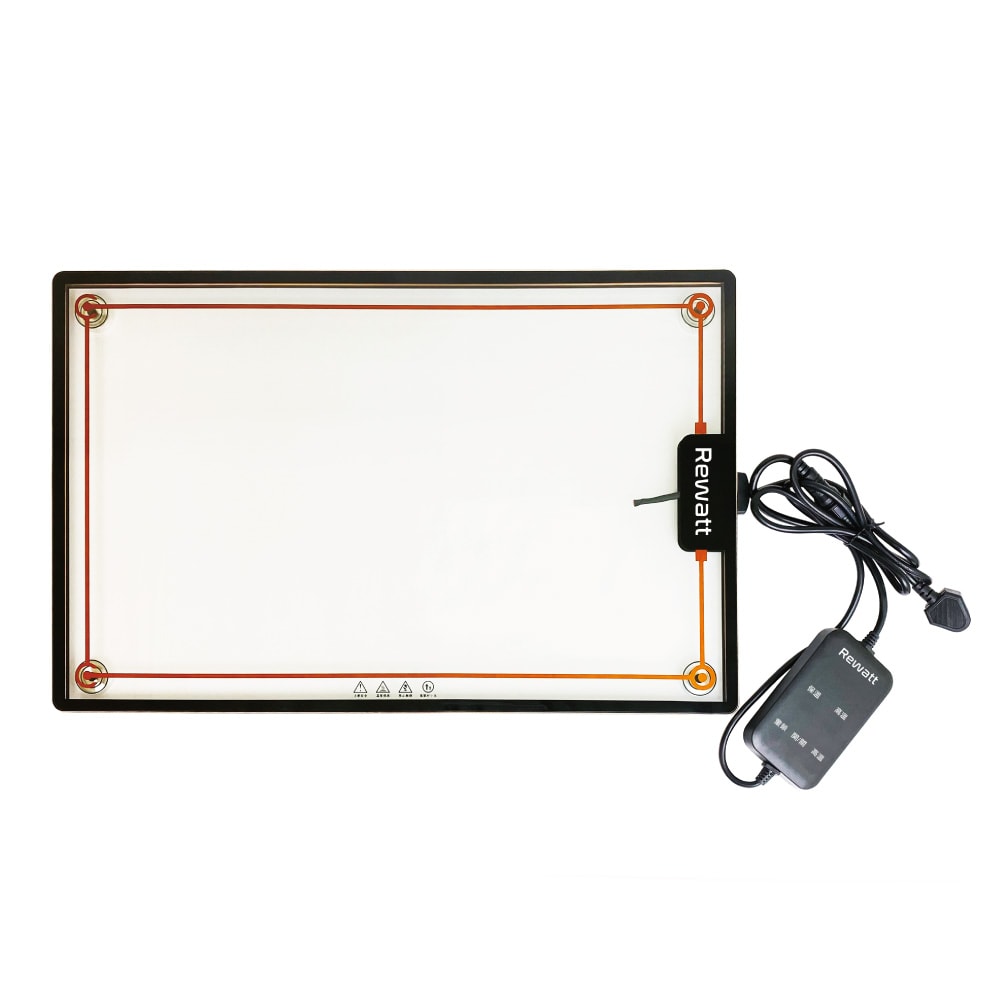

PT-300 Nano Far Infrared Insulation Plate
- Heating film: The heating film is directly coated on the substrate
- Voltage / Power : 220V / 300W
- Dimensions: 675 x 453 x 80 (mm)
- 10-stage temperature control, the maximum surface temperature is 160°C
- Multi-layer transparent tempered glass, scratch-resistant, explosion-proof
- Multiple safety protection devices, ultra-thin body, no need to pick tableware
- Purpose of use: heat preservation
Barbecue plate
- Heating film: The heating film is directly coated on the substrate
- Voltage / Power : 220V / 1000W
- Heating temperature: 80 ~ 300°C
- Heating area: 355 x 235 (mm)
- Purpose of use: Roasting, frying
- Dimensions: 340 x 500 x 60 (mm) without handle
Microcrystalline Heating Furnace
- Heating film: The heating film is directly coated on the substrate
- Voltage / Power : 220V / 750W
- Heating temperature: 30 ~ 500°C
- Heating area: Φ 130 (mm)
- Purpose of use: boiling water, keeping warm, cooking
- Dimensions: 258x210x30 (mm)
Thermal coaster
- Heating film: The heating film is directly coated on the substrate
- Voltage / Power : DC 5V / 2A
- Heating temperature: 25 ~ 100°C
- Heating area: Φ 90 (mm)
- Purpose of use: heat preservation
- Dimensions: Φ90 x 25 (mm)
