QR109F｜數位恆溫變頻電熱水器
【Bathing should also be full of ritual feeling】
The only electric water heater with a mirror design and the highest appearance in the industry, Putting it at home is not only an electric water heater, but also a beautiful decoration. Precise temperature control within 0.5°C, one-button touch setting is the most convenient.
【Green tile quality is good and safe】
Commodity content:
Host x1, Water flow regulating valve x1, Back hanger x2, Supercharged water-saving shower head three-piece set
Installation Notes (Additional Purchase Service)
Standard installation: The installation area is limited to the North and North Jitao area, the standard installation is 1,000 yuan, the ceiling construction is 300 yuan, and the pipe is extra. If the on-site quotation is not installed or there are irresistible factors (such as failure to meet the installation specifications, damage to the decoration, etc.) that make the installation impossible, a 500 yuan empty service fee will be charged. (Please refer to the shopping description page for details)
建議售價 : NT$15,800
※For online credit card purchases, please fill in the delivery address in the transaction content part of the credit card link to facilitate shipment
A beautiful electric water heater like a decoration, more exquisite design process than imagined
On average, it can save 5,000 yuan in electricity bills every year!!! The heat conversion rate is as high as 98%, and no electricity is wasted
Ten Security Protections
Patented Thin Film Heated Quartz Tube
Using exclusive patented technology, the heating speed is fast, the quartz material is resistant to high temperature, acid and alkali, and does not stick to scale. It is suitable for any water quality, such as: lime water, sulfur water, ground water...etc.
Free temperature adjustment
Digital constant temperature, 30° C ~ 60° C (with water flow adjustment required) precise temperature control, meeting the water temperature required by all members of the family, making bathing easier
Tempered glass panel
The overall fashion combined with technological design makes the overall bathroom more harmonious, making the electric water heater also a beautiful decoration.
產品規格 /
Product Specifications
- 型號 : QR-109F

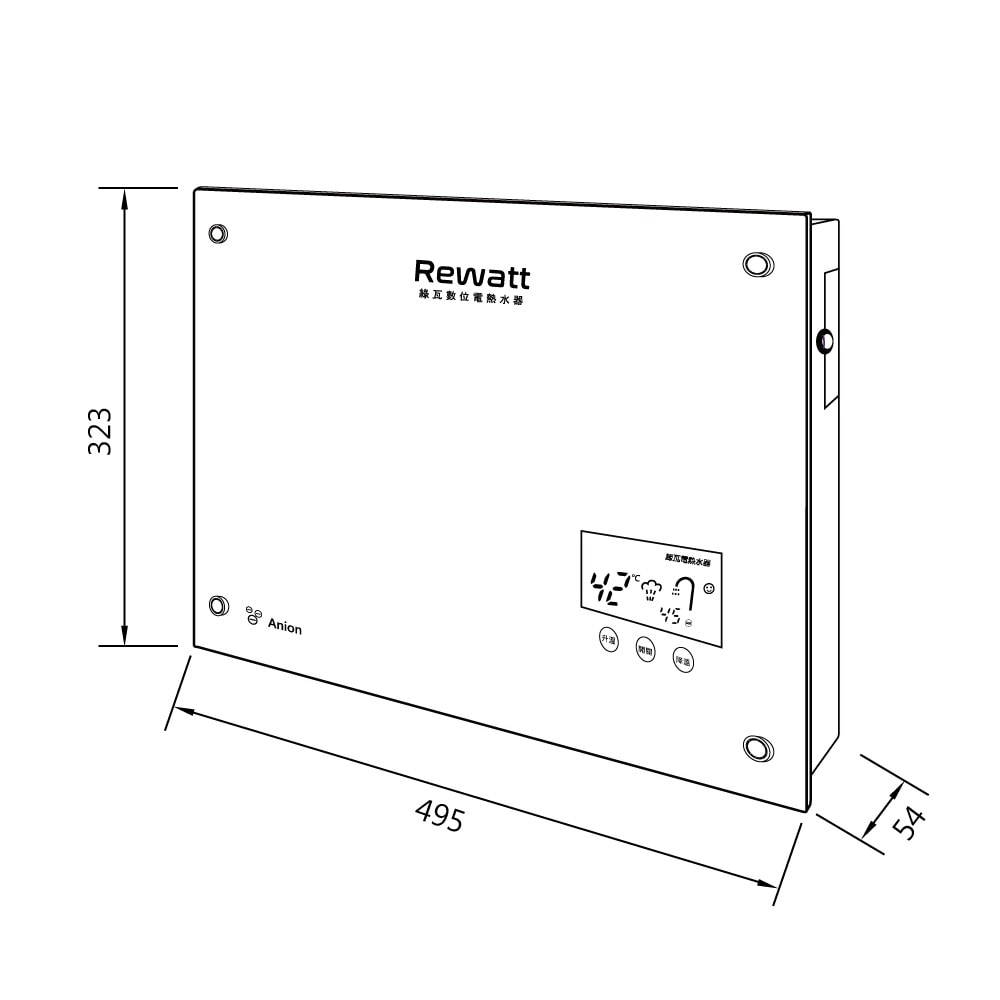

- Product Dimensions : W495 x H323 x D54 (mm)
- Rated voltage / frequency: 220V / 60Hz
- Rated Power / Current : 0~9900W / 0~45A
- Applicable water pressure: 0.7Mpa
- Flow range: 1.6L ~ 6L
- Waterproof grade: IPX4
- Thermal efficiency: 98%
- Inlet and outlet pipe diameter: PE-1/2" x 14PI (four points)
- Additional functions: digital constant temperature, intelligent frequency conversion, large flow, mirror surface, negative ion
- Use wire diameter: 8m㎡
Common problem
A You can ask the hydropower master to pull the 220V dedicated circuit, or join LINE ID: 0800500186, and the online customer service will help you conduct an online survey.
A The waterproof level of our electric water heater is IPX4, and the installation location is recommended to be 150~160cm above the ground. The product contains a high-speed electronic leakage circuit breaker, so that you can use it safely and at ease.
A It is recommended to install the electric water heater directly in the bathroom, because the closer the pipeline distance, the better the performance. If it is to be installed outside the bathroom, the pipeline distance should be within four meters to avoid temperature drop caused by too long a distance.
A No. Putting it flat or upside down will cause the quartz tube inside the heater to burn empty. If the product is damaged due to failure to install it on the wall according to the regulations, the product will not be guaranteed.
A 僅有外型上的差異，由於每個浴室空間不一樣，若您的浴室空間較小可選擇QR-209F整體視覺感會較好。
A It can purify the air in the bathroom. After testing the negative ion release > 1,236,000 ion/c.c, it is like bathing in a forest.
